ECO Rich R

Increased energy efficiency by equipping with the highly efficient IPM motor drive system

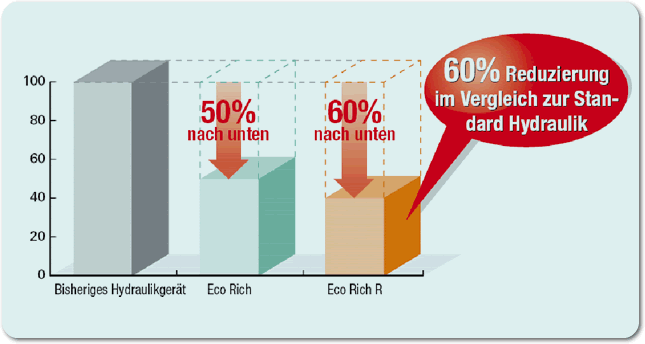

Achieve energy savings and ease of use with Eco Rich R

• Possibility to select four PQ application patterns
  • Four application patterns for pressure and flow rate can be set via the control panel.
  • The four application patterns for pressure and flow rate can be switched via the external input signal.
• Dry-running detection
  • Built-in function to prevent dry running. If the amount of oil in the tank falls below the specified level, the automatic shutdown prevents the machine from running dry, thereby extending the service life of the appliance.
• Increasing the pressure control capacity at low pressure
  • The pressure can be set from 5 bar
• Optional functions
  • Relay socket: Simplification of the cable connection.
  • Function for increasing the oil temperature: If the oil temperature is low, this function can be used to increase the oil temperature in a short time. This shortens the machine's start-up time.
